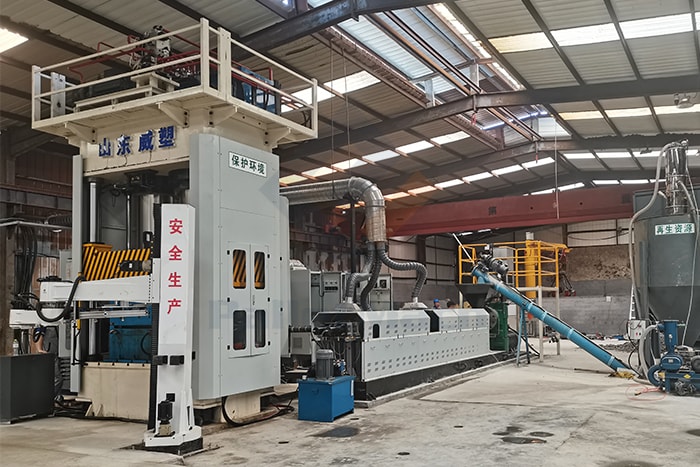

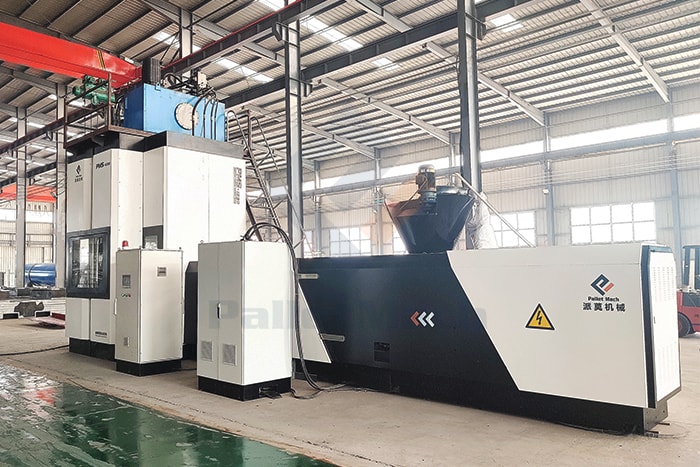

By this machine, PalletMach provides a low-cost and environmentally friendly solution for waste plastic recycling which is to produce moulding plastic pallet. We can customize solutions for your specific demands on plastic materials. If you are interested in this plastic pallet moulding machine, please feel free to contact us.
Overview
- Raw materials suitable for this machine can be waste plastic, PP, PE, PVC and so on.

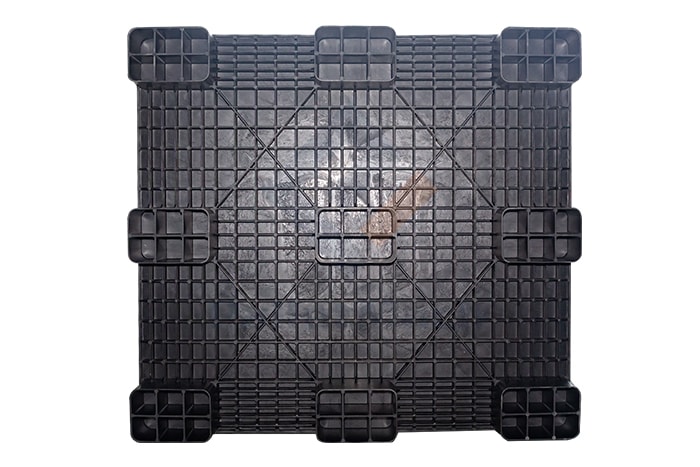

- The plastic pallet can be used for packing and stock storage as bearers, and plastic pallet is environmental friendly.
- The compressed plastic pallet moulding machine provides a profitable solution for plastic recycling.
Features
The structure of “three-beam four-column” is the core competitiveness of our press technology. Over years’ of testing and feedback from our clients, we upgrade it deeply and the latest generation of machine has the following features:
- Less than 0.1 mm tolerance on forming mold.
- Detachable connection makes it easier for changing molds, conducting maintenance and transportation.
- Equipped with top level motor and suspension structure which helps to save space and improve security.
| Plastic pallet moulding machine model parameters | |
| Model | PMS-1250 |
| Pressure | 0-1000 tons (adjustable) |
| Hydraulic oil cylinder quantity | 2 pieces |
| Shaping cycle | 120 seconds |
| Capacity | 20 pcs/ h |
| Power | 55 kW |
| Weight | 32 tons |
| *All specifications and operation instructions are compliance with the OSHA Standard. *Mold and cylinder system are controlled by PLC programming. *Note: 600L Hydraulic oil shall be fueled before starting the machine for operation. |
|
Designed and manufactured by Shanghai Pallet Machinery Co., Ltd, professional plasitc pallet moulding machine manufacturer. Thanks for your contact. We will make an efficient solution under comprehensive consideration.
